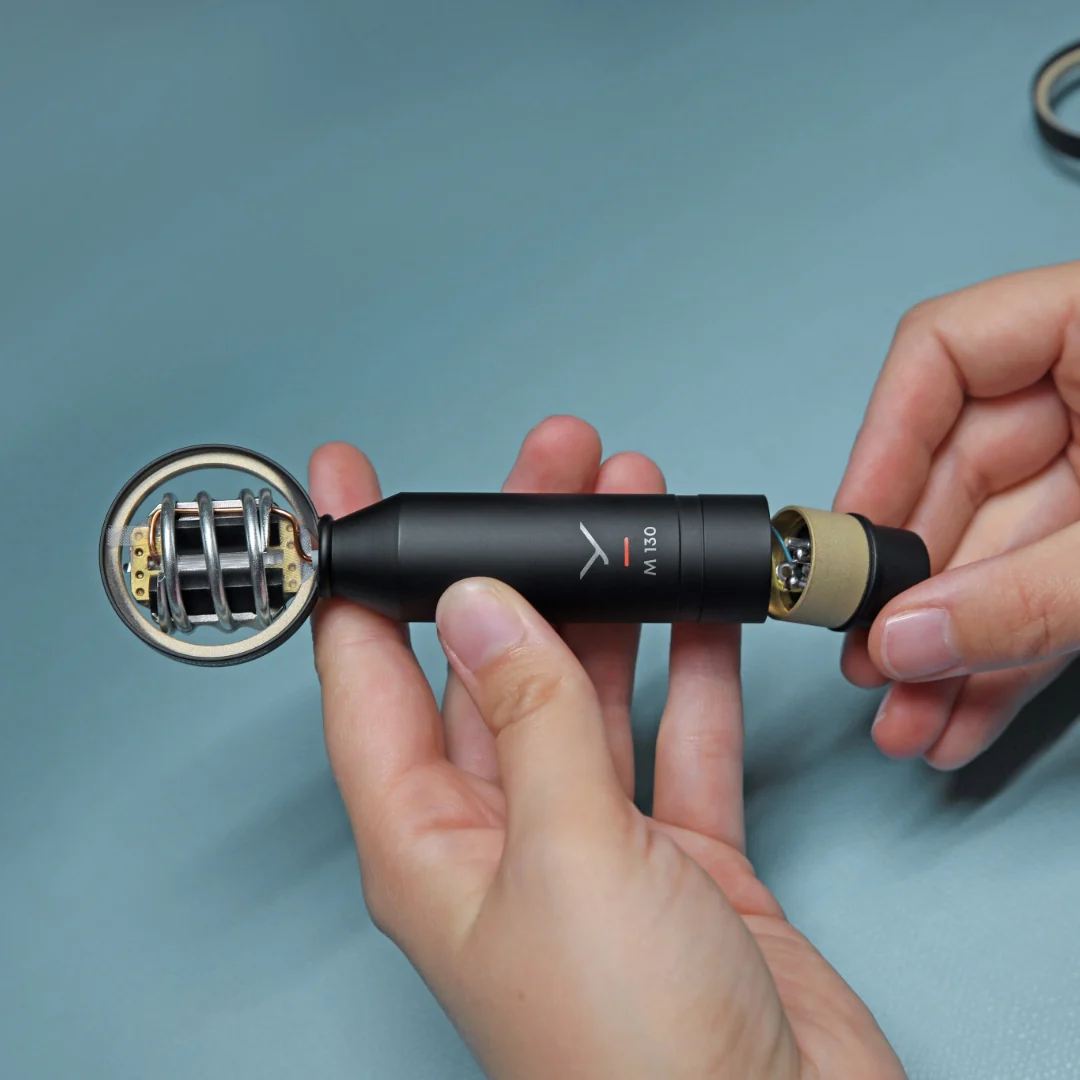

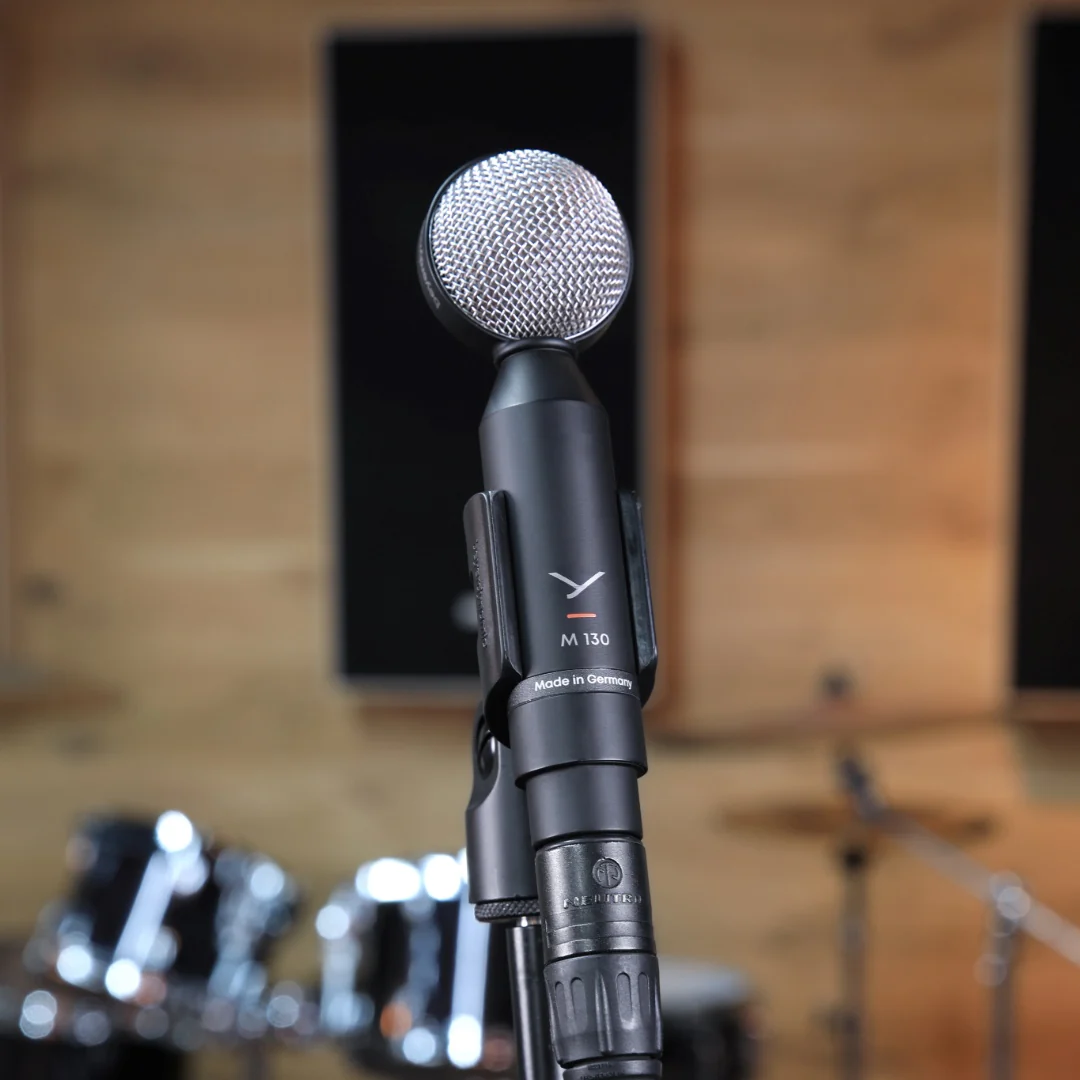

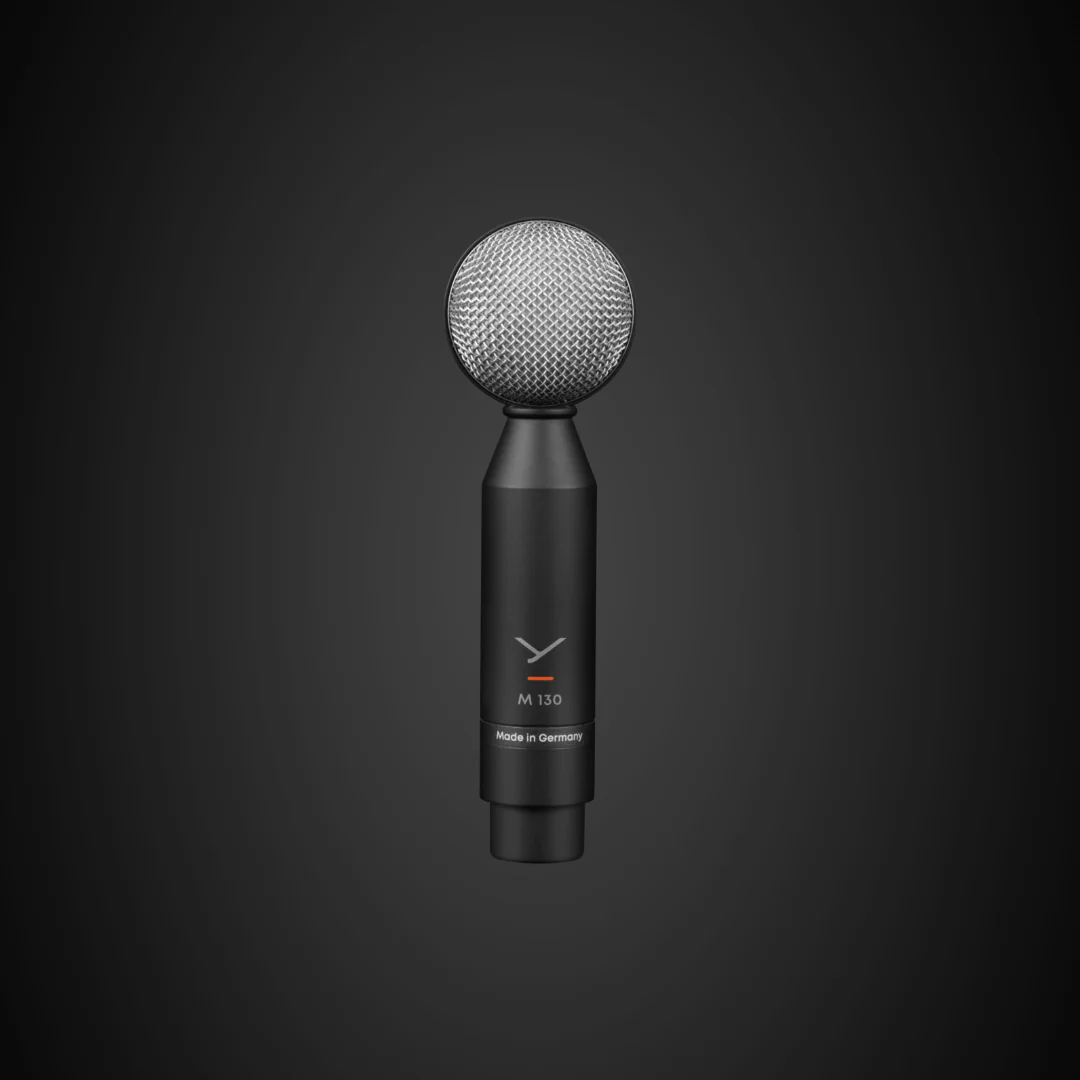

M 130 Dynamic Double-Ribbon Microphone With Figure-Of-Eight Polar Pattern

M 130 - The Legendary Double-Ribbon Microphone – Handmade in Germany

Updated 2023 iteration:

For over 65 years the M 130 dynamic double-ribbon microphone continues to be considered the reference in the field of double-ribbon microphones due to its remarkably natural sound reproduction.

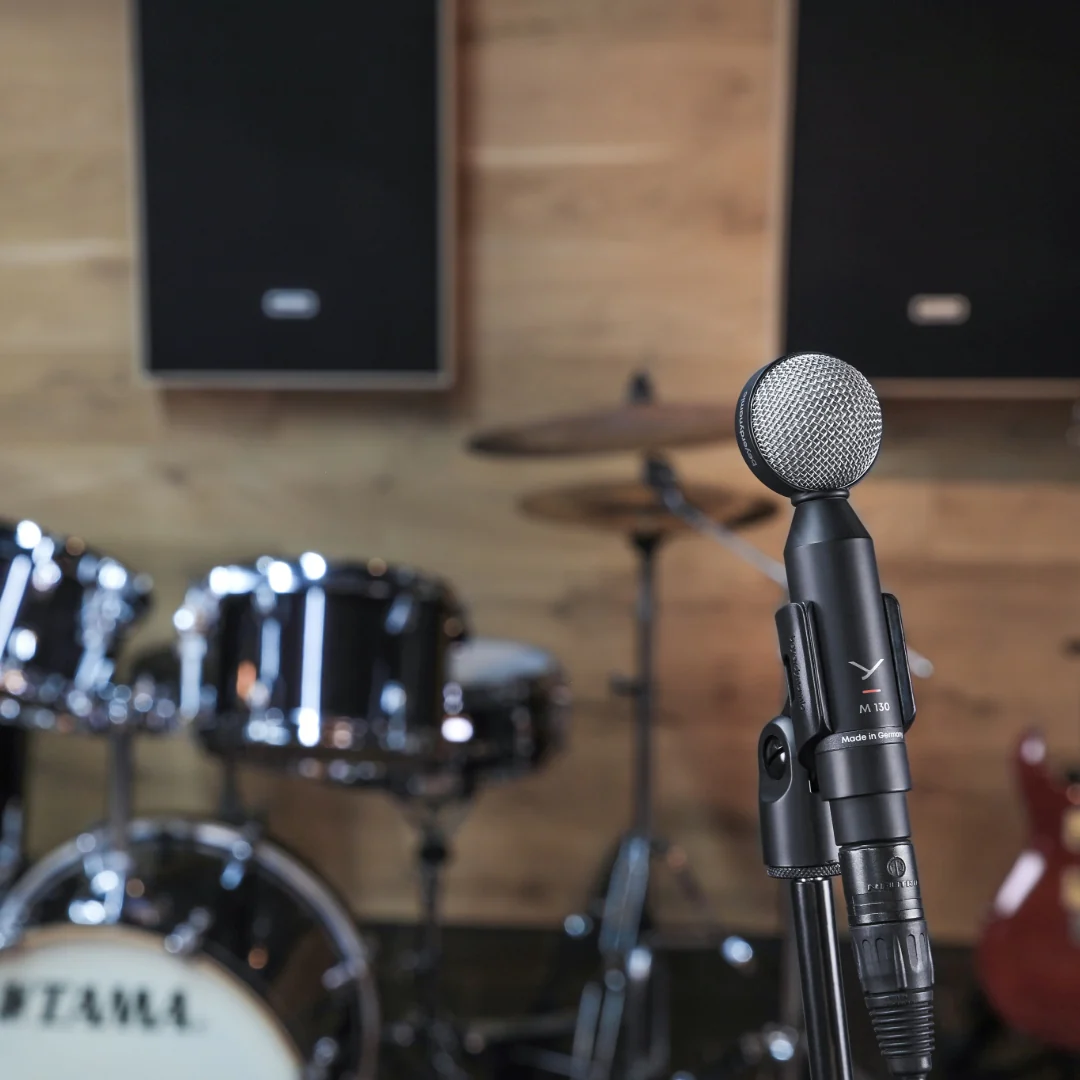

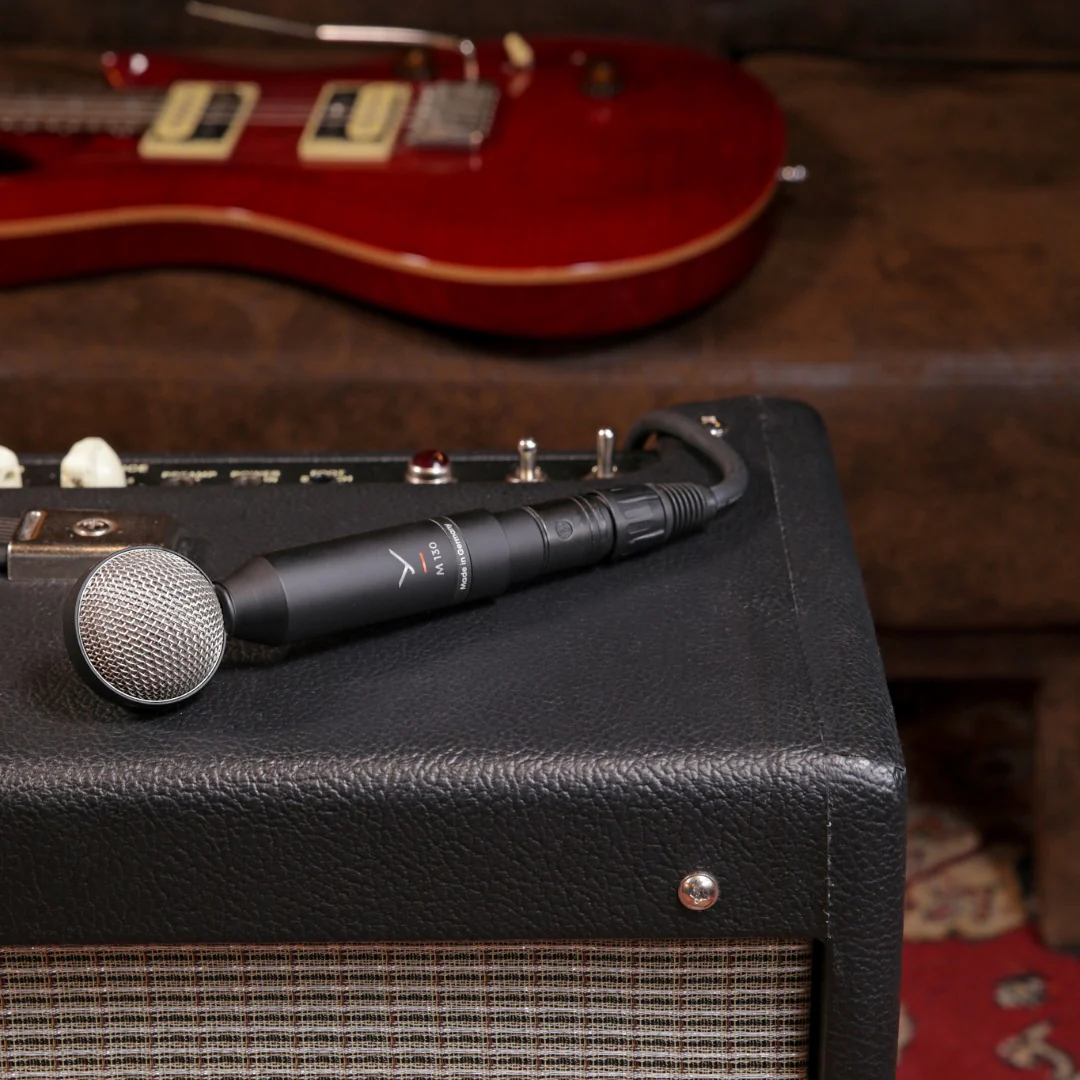

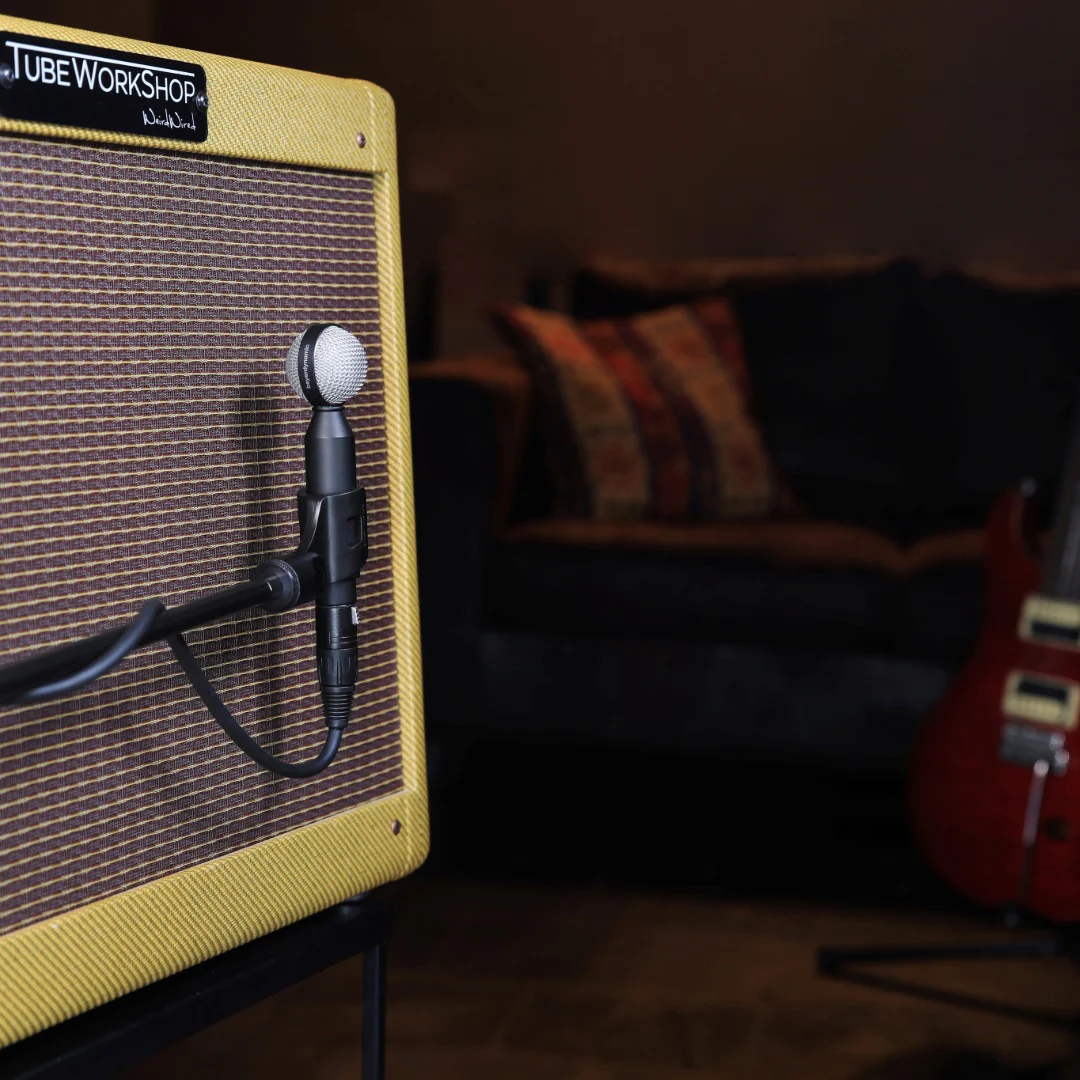

The M 130 is ideal for stereo, room and instrument recordings and brings a popular and special ribbon sound that is characterised by warmth and precision. Depending on positioning and spatial situation, the M 130 can be used for studio recordings of drums, electric guitar amps, piano, acoustic guitars, orchestras, choirs and for all kinds of atmospheric recordings.

Equipped with a figure-of-eight polar pattern, the microphone classic can be used not only for picking up various instruments, but also for stereo recordings in Blumlein or M/S stereo configuration.

As a stereo microphone system, two M 130 can be used to create a Blumlein stereo system for an excellent sounding room recording. M/S recordings can be made together with a hypercardioid or supercardioid microphone such as the M 160 dynamic double-ribbon microphone or the MC 950 true condenser microphone.

FEATURES

• Dynamic double-ribbon microphone, Figure-eight polar pattern
• Natural sound reproduction and remarkable impulse fidelity
• High impulse fidelity and good transient response
• Perfect for stereo, ambient and instrument recordings

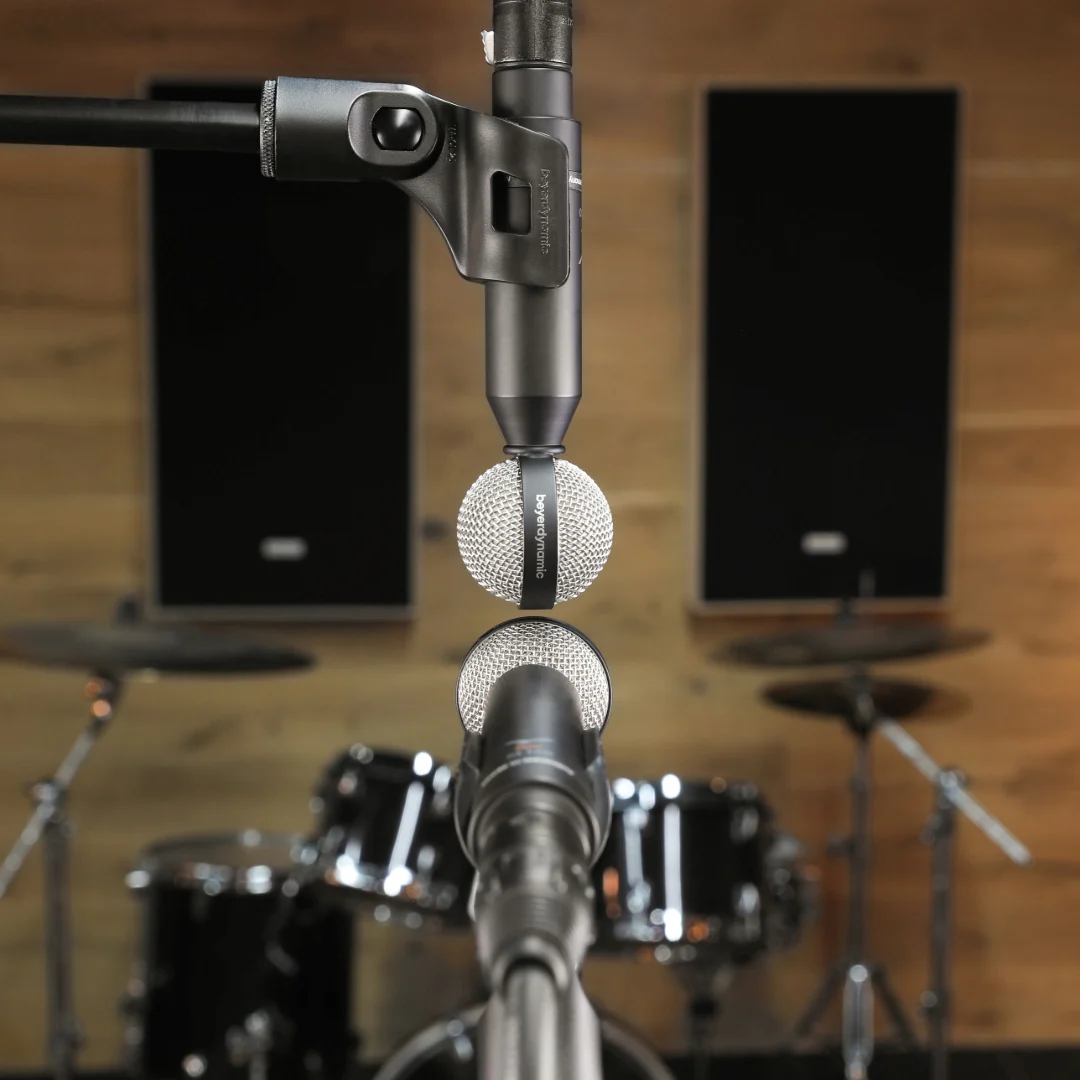

• Ideal for Blumlein or M/S stereo configuration
• Excellent suppression of lateral noise
• Handmade in Germany since 1957

SPECIFICATIONS

• Transducer type: Dynamic
• Operating principle: Pressure gradient
• Frequency response:  40 - 18,000 Hz
• Polar pattern:  Figure-eight
• Rear attenuation at 1 kHz:  > 30 dB at 90°
• Sensitivity (0 dB = 1 V/Pa): 1.3 mV/Pa (= -57.5 dBV)
• Nominal impedance: 200 Ω
• Load impedance:  ≥ 1000 Ω
• Diaphragm:  Pure aluminium
• Case/finish: Brass
• Connector: XLR, 3-pin, male

Dimensions

• Length:  128 mm
• Shaft diameter: 23 mm
• Head diameter: 38.5 mm
• Weight:  160 g

SUPPLIED ACCESSORY

MA-CL 25 Microphone clamp with3/8" internal thread,
with internal diameter of 25 mm . . . Order # 727.954

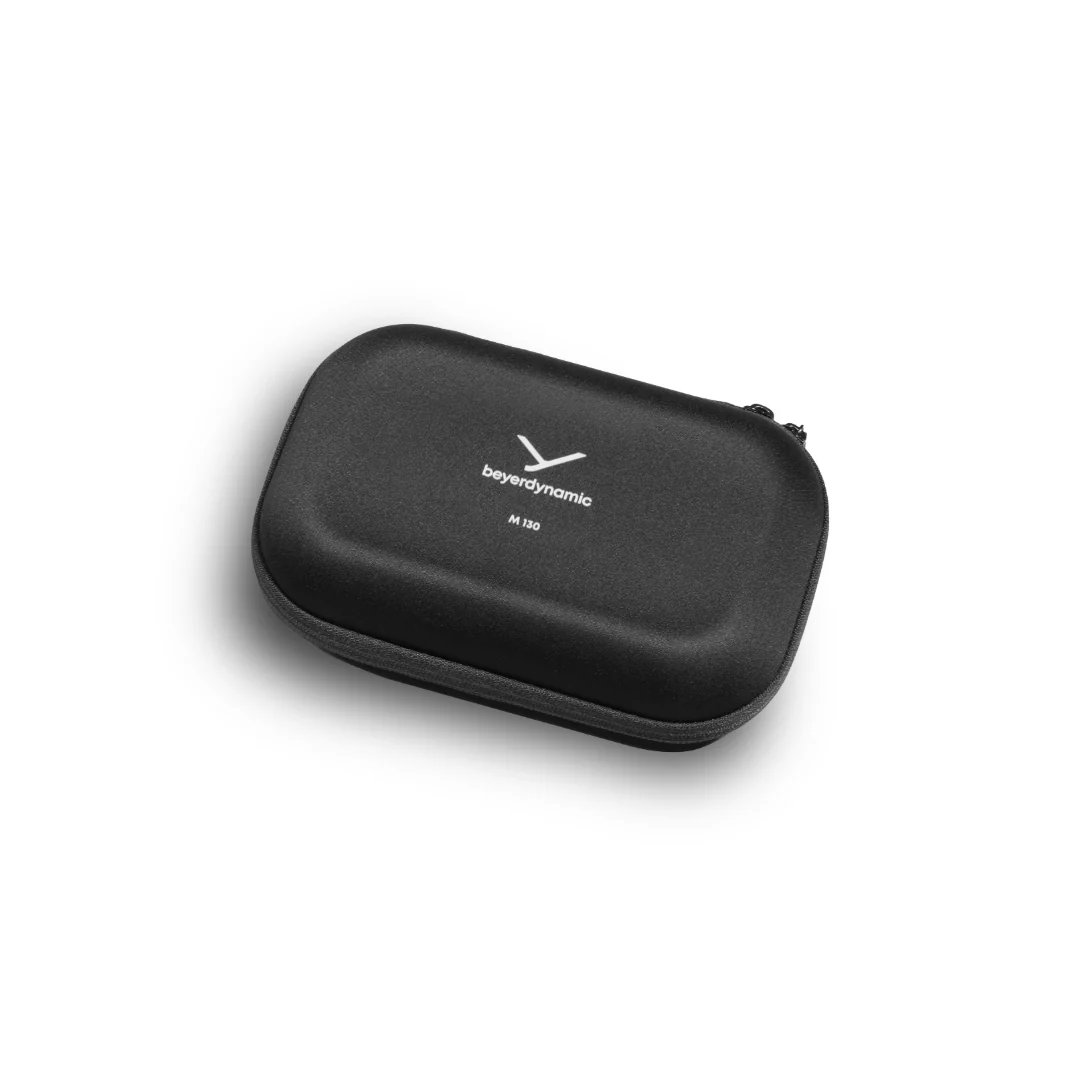

Soft protective storage case to protect your investment.
